From Concept Sketch to Prototype

What is Concept Sketching & Prototyping?

Concept sketching and prototyping are the earliest tangible steps in transforming an arriving at an idea and then transforming it into a real product. Concept sketching involves, visually exploring ideas often quickly and roughly to define the overall direction, character, and intent of a product. Prototyping follows by converting selected ideas into physical or digital forms that can be evaluated, discussed, and tested.
In an OEM(Original Equipment Manufacturers) setting, these stages are critical because they reduce risk early. Instead of committing to one idea too soon, teams can explore multiple directions, align on expectations, and identify impractical solutions before major investments are made. Sketches and prototypes also act as a shared language across departments, helping design, engineering, manufacturing, and management stay aligned on product direction.

A Typical Product Development Cycle

Automotive product development follows a structured but iterative cycle. At a high level, it moves from idea generation to concept development, then to detailed design, engineering development, prototyping, testing, validation, and finally production. Each phase progressively increases clarity and confidence while narrowing down options.

Concept sketching sits at the very beginning of this cycle, where ideas are fluid and open-ended. Prototyping begins once these ideas need to be evaluated more concretely. The key purpose of these phases is not perfection, but understanding what works, what doesn’t, and why. For freshers, it is important to recognise that feedback from later stages often loops back to earlier ones, making iteration a natural and necessary part of the journey.

Concept Sketch Basics

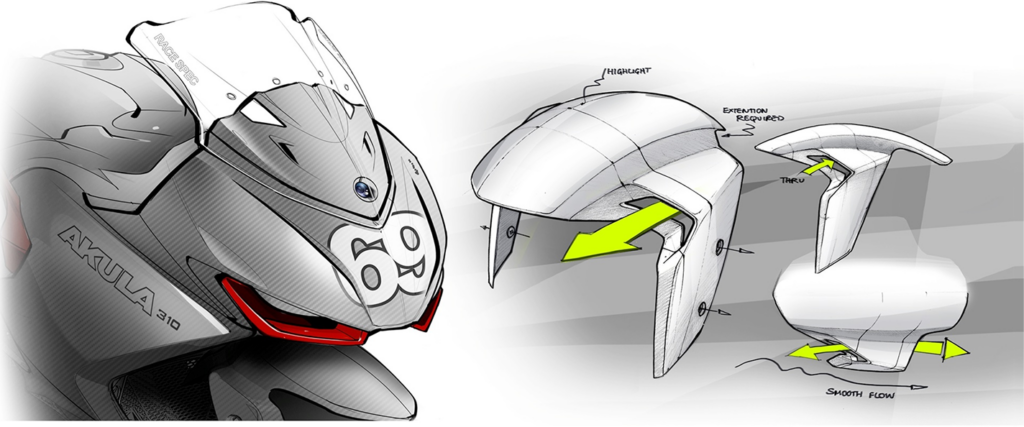

Concept sketches are tools for thinking and communication, not finished designs. They aim to capture proportions, character, emotions and overall visual direction rather than details like exact dimensions or materials. A good concept sketch invites discussion and interpretation rather than locking down solutions.

Freshers will hear terms such as ‘stance’ (how modest, stable or aggressive the vehicle appears), proportion (relationship between the parts), silhouette (overall outline), and character lines (strong visual features defining its form). Concept sketches are not meant to solve engineering problems or show manufacturable details.
Concept sketching usually begins with groundwork. This includes mood-boarding (a collage of visual inspiration), defining a design philosophy, understanding the brand, studying competitors, and researching user profile. This background ensures creativity is informed rather than random, giving sketches purpose and coherence.

Concept sketching can be done using both physical and digital methods, and each has its place in automotive development. Physical sketching with pen, pencil, or markers on paper is often faster and more expressive, making it ideal for early idea exploration and free-flowing creativity. Digital sketching, using tablets and software, allows for quicker iterations, easy edits, and better sharing across teams. Many designers use a mix of both—starting with physical sketches to explore ideas freely, then moving to digital tools to refine and communicate concepts more effectively. With the advent of AI tools, the process of creating concepts are evolving. One is now able to generate ideas based on specific inputs to advanced software. The software provides enormous speed and options while the creator still needs to be the one guiding the creative efforts.

elementor-placeholder-image

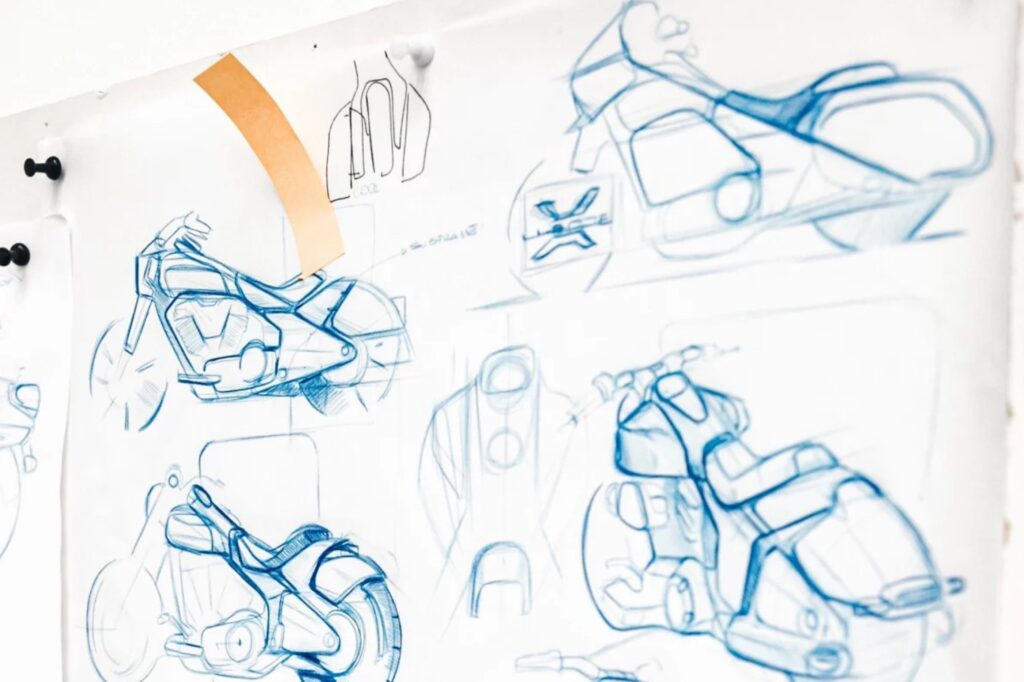

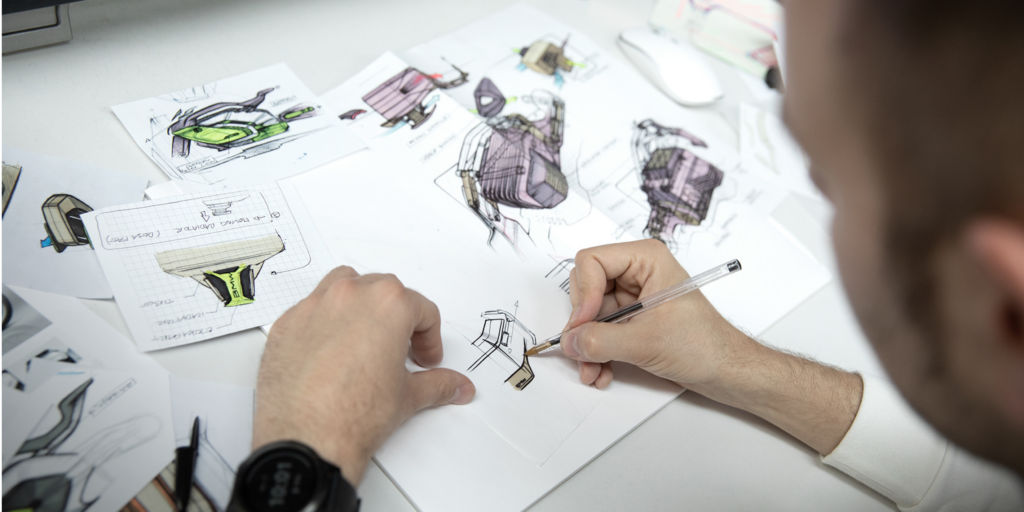

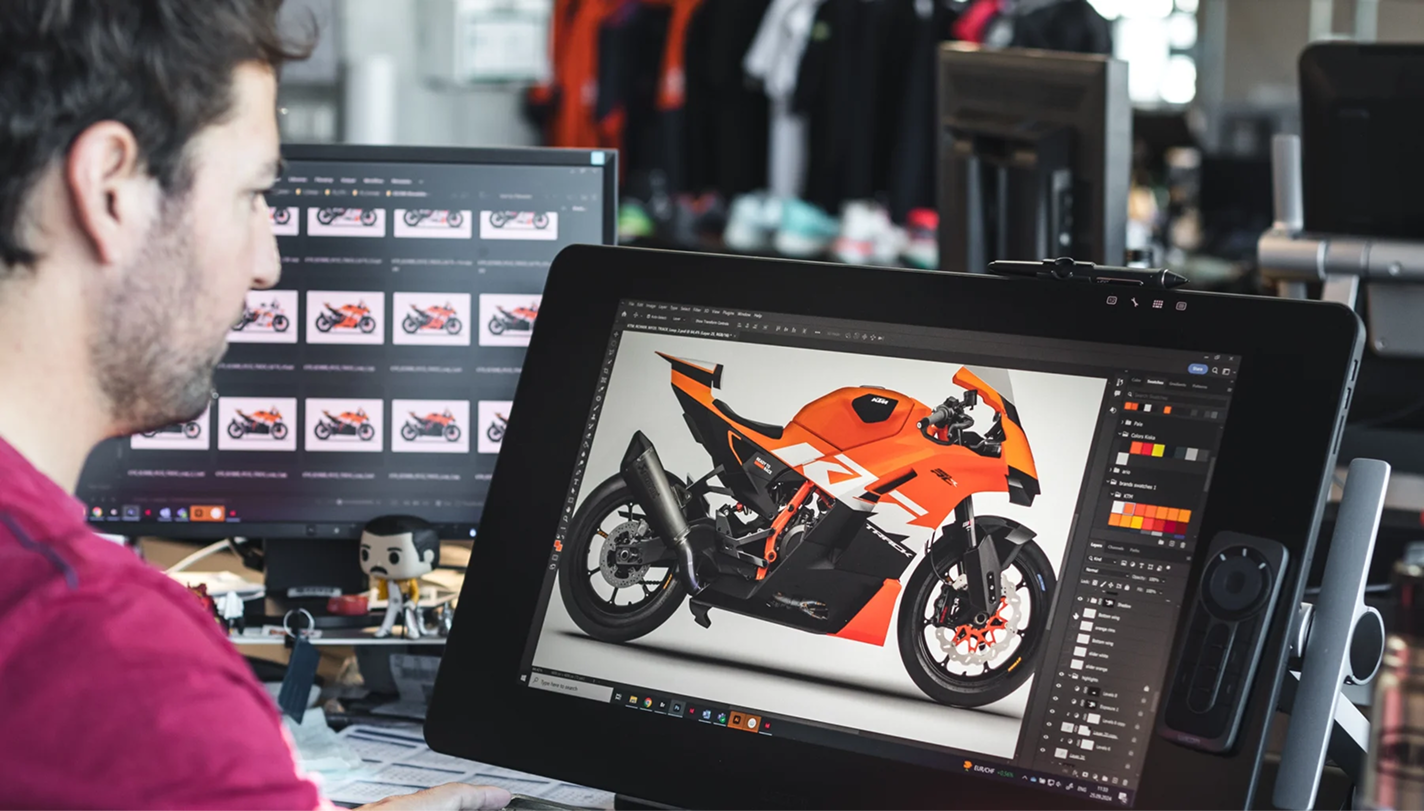

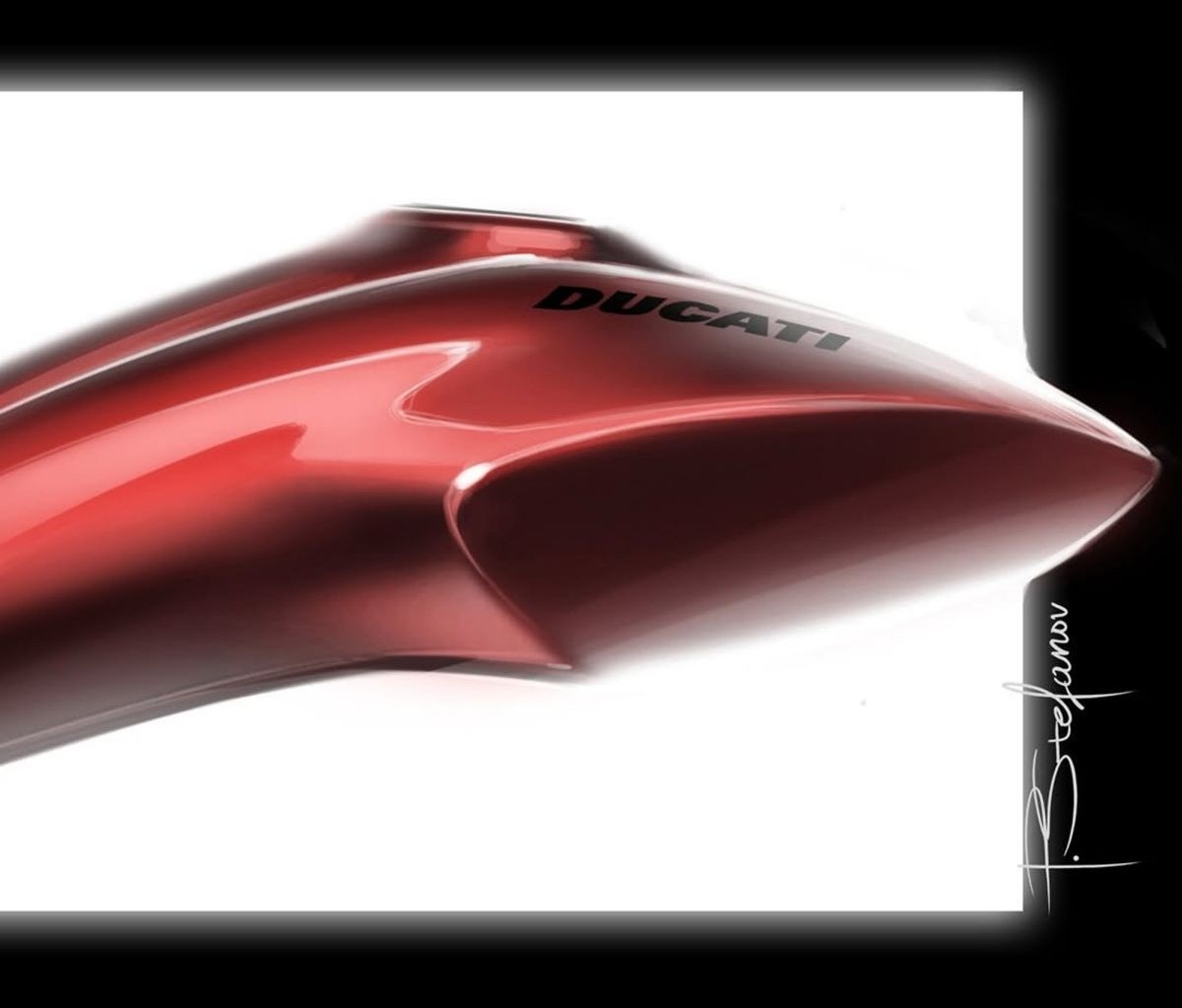

Digital tablet sketching
elementor-placeholder-image

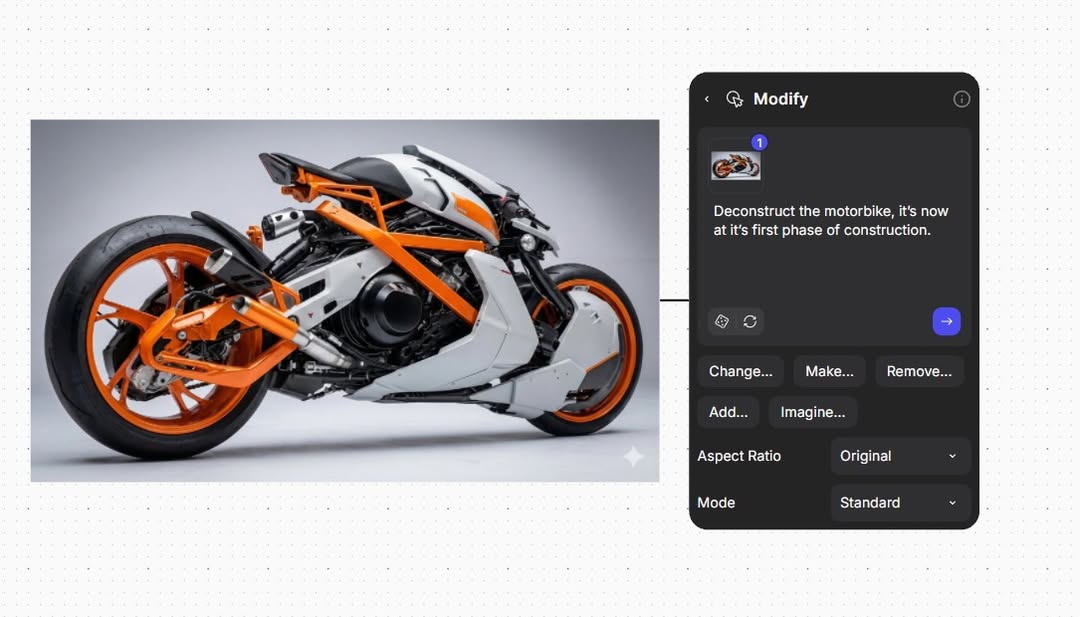

AI generated image with prompt written under it
elementor-placeholder-image

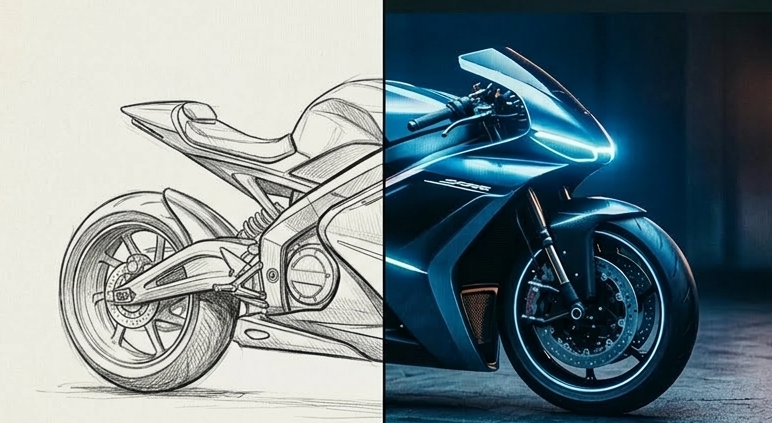

simple sketch to AI render split image

Concept meets reality

As concepts evolve, they begin interacting with real-world constraints. Business goals influence cost targets and market positioning. Market trends shape styling direction and feature expectations. Engineering constraints define what can realistically be packaged within a given layout.
Packaging refers to fitting major components—engine, battery, suspension, wheels, fuel system, or electronics—within available space in the most optimum manner. Manufacturing considerations determine whether shapes can be produced consistently at scale. Regulations related to safety, emissions, and ergonomics also play a role early on.
At this stage, the challenge is balance. Too many constraints too early can dilute creativity, while ignoring them completely can lead to unrealistic concepts. Successful teams allow creative exploration while gradually introducing reality checks to guide concepts toward feasible solutions.

Examples or cases of each of the above with image:

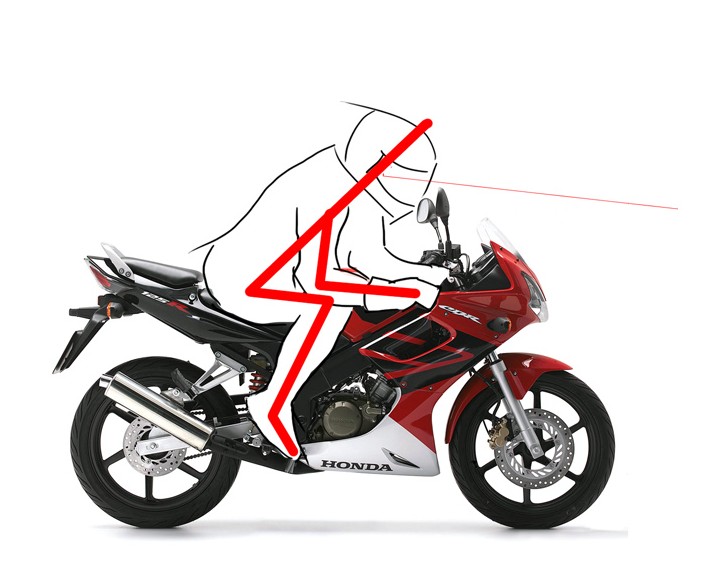

Rider hard points


Fixed rider hard points such as hip position, foot location, and reach define where the seat, handlebar, and footrests must be placed. Even at the concept stage, these points influence overall proportions and riding posture.

Manufacturing feasibility

A surface with deep undercuts or sharp reverse curves may look attractive in a sketch, but such geometry cannot be formed using simple sheet metal processes. This pushes designers to rethink shapes without losing visual character.

Regulatory requirements

Regulations governing headlamp size, indicator visibility, and mounting height directly affect styling. What appears as a design choice often starts as a legal requirement that must be respected early.

Business and market requirements

In a B2B-focused product, business needs such as durability, ease of maintenance, or accessory mounting can influence design features. These requirements shape the concept as much as aesthetics or performance.

From Sketch to CAD

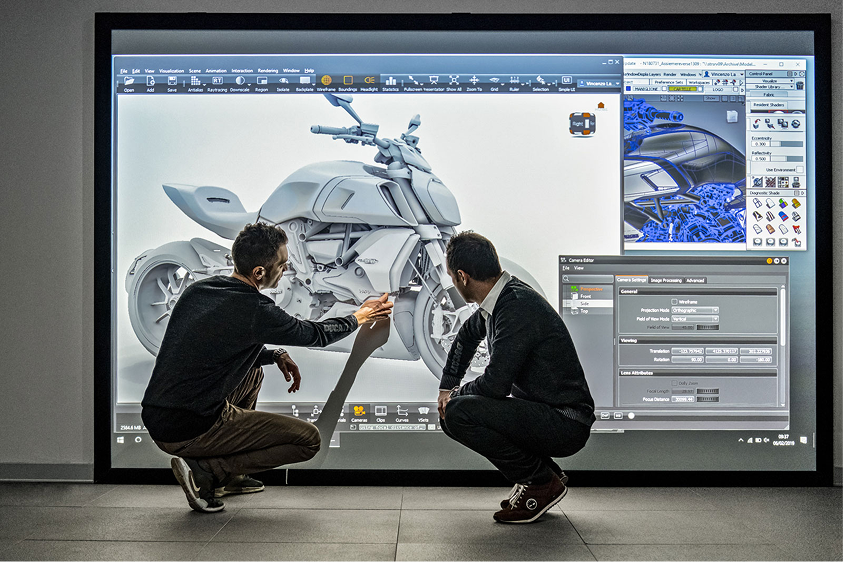

3D modeling of a bike

Once a concept direction is selected, sketches are translated into CAD (Computer-Aided Design). CAD converts visual ideas into precise digital models that can be measured, evaluated, and shared across teams. This step marks the transition from expression to definition. Many a times, CAD is also used seamlessly with concept sketching to arrive at an overall product concept. It is then taken to a more detailed CAD phase.

Real world aspects like dimensions, reference points, and surfaces start coming in. At this stage, the design intent, engineering parameters and manufacturing feasibility all go hand in hand. This phase requires close collaboration between teams to ensure the original vision is not lost while technical requirements are met.Packaging refers to fitting major components—engine, battery, suspension, wheels, fuel system, or electronics—within available space in the most optimum manner. Manufacturing considerations determine whether shapes can be produced consistently at scale. Regulations related to safety, emissions, and ergonomics also play a role early on.
At this stage, the challenge is balance. Too many constraints too early can dilute creativity, while ignoring them completely can lead to unrealistic concepts. Successful teams allow creative exploration while gradually introducing reality checks to guide concepts toward feasible solutions.

Meaning of Prototypes

In automotive development, a prototype is a learning tool, not a final product. Prototypes are built to answer specific questions at different stages of development. As a result, multiple prototypes may be created, each serving a distinct purpose.

Some prototypes are built purely for show, such as display models or concept vehicles. Others are functional, used for performance testing, ergonomics evaluation, or durability studies. Some prototypes exist only to validate a particular subsystem or layout. Understanding this helps freshers avoid expecting prototypes to look or behave like production vehicles.

elementor-placeholder-image

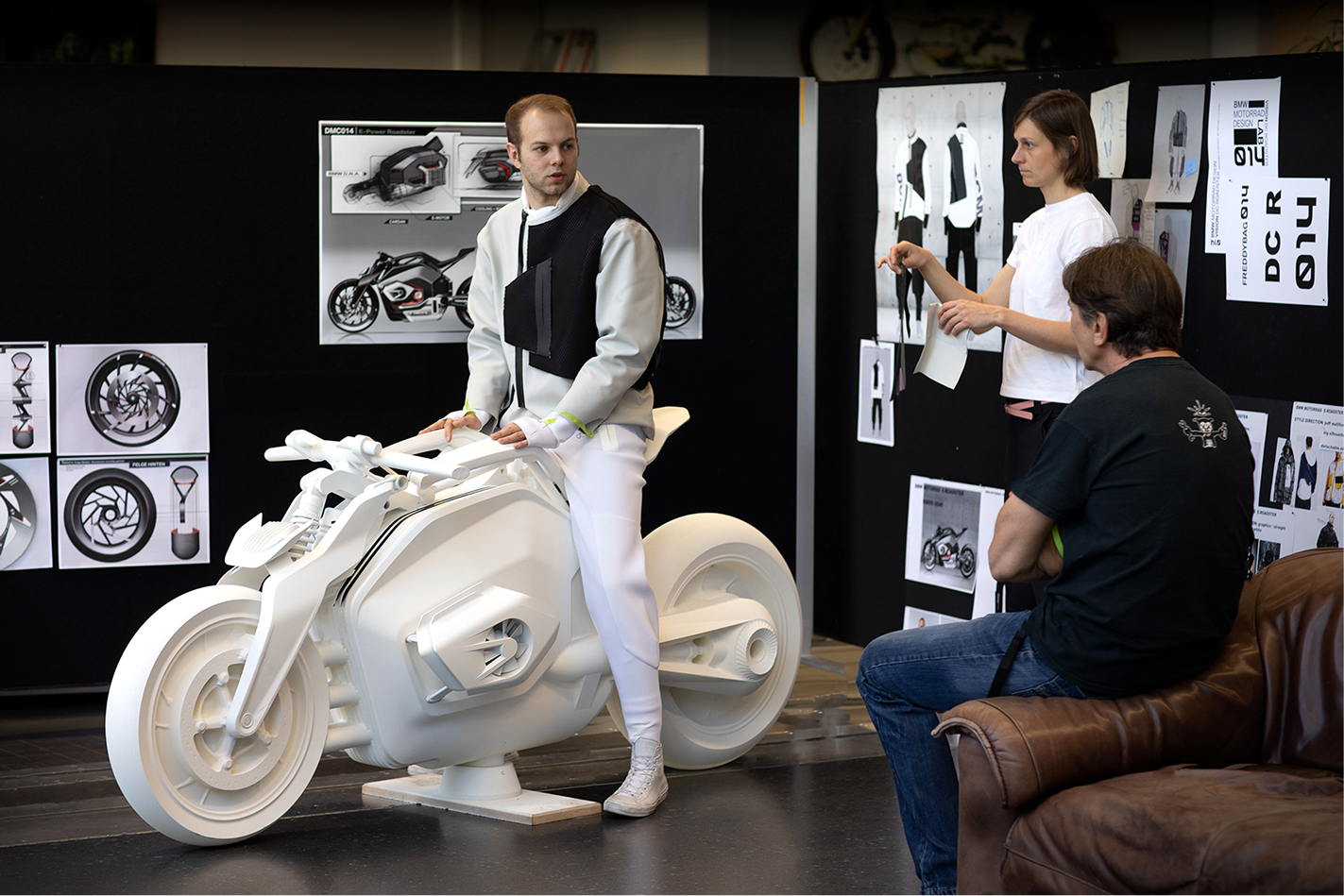

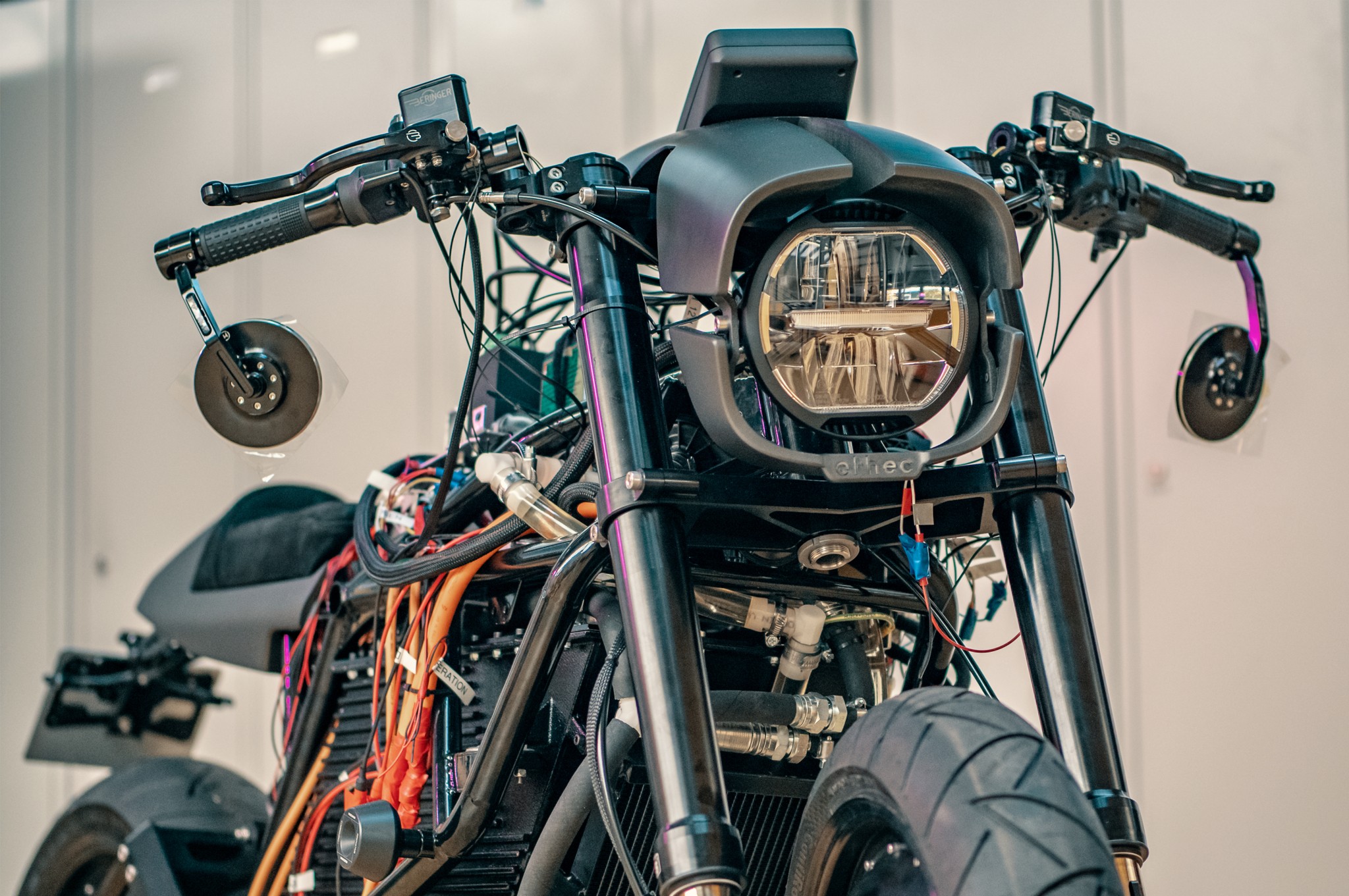

Proto of a mechanical system
elementor-placeholder-image

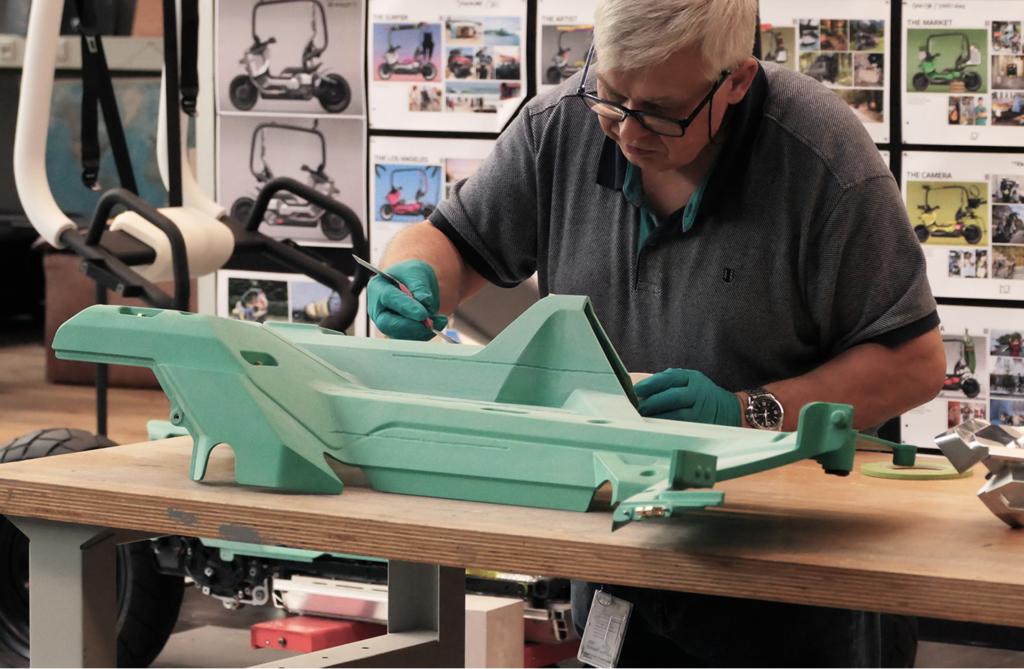

full scale vacuum casted vehicle prototype

Prototyping Techniques Overview

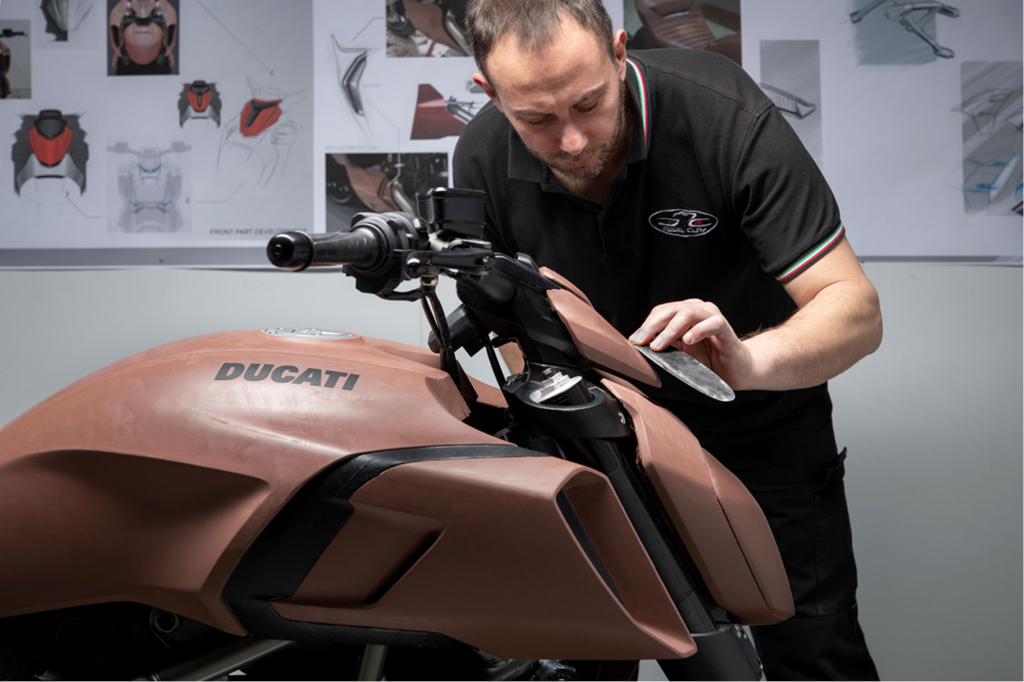

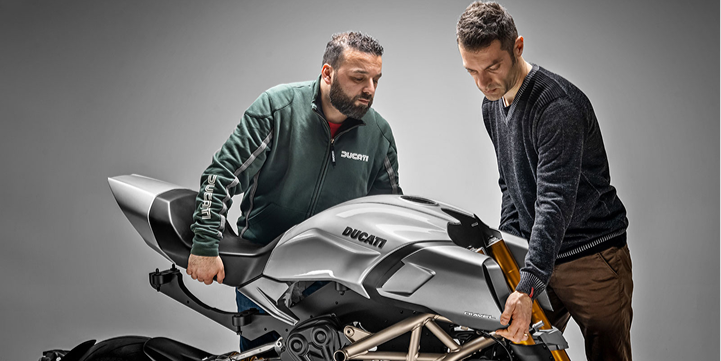

Clay modeling

OEMs use a wide range of prototyping techniques depending on objectives, timelines, and budgets. Clay modeling is commonly used to evaluate form and proportions. 3D printing allows rapid creation of parts for fit and functional checks. Fabricated metal or composite parts help validate strength and mounting.

Different processes are chosen based on urgency and accuracy needs. Early-stage prototypes prioritize speed, technicality and flexibility, while later ones prioritize realism and durability. Knowing why a particular technique is selected helps us understand trade-offs and development priorities.

Case Study 1: 3D-Printed Display Cluster

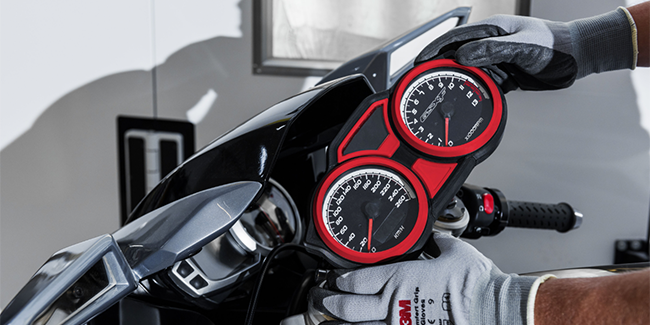

To quickly evaluate a handle-mounted display cluster design, the housing and surrounding parts are 3D printed. This allows the team to check visual proportion, screen visibility, and rider reach early, enabling fast feedback and iteration before detailed engineering.

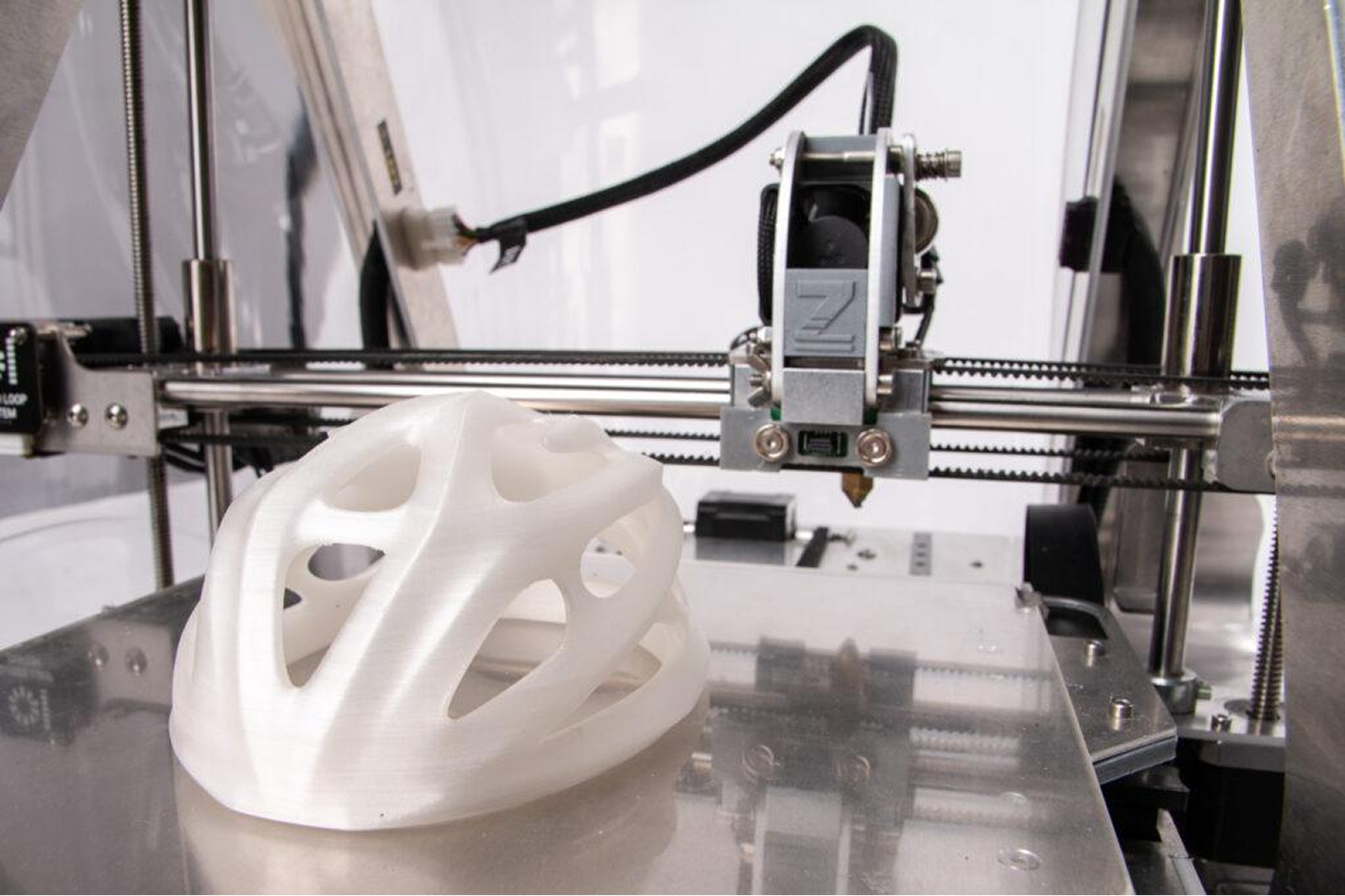

3D printed local parts/assembly
Case Study 2: Vacuum-Cast Full Vehicle Panels

Once the design is largely frozen, all body panels are vacuum cast to create multiple full vehicle sets. These are assembled with internal components to validate fit, gaps, and packaging, serving as a key step before final production tooling.

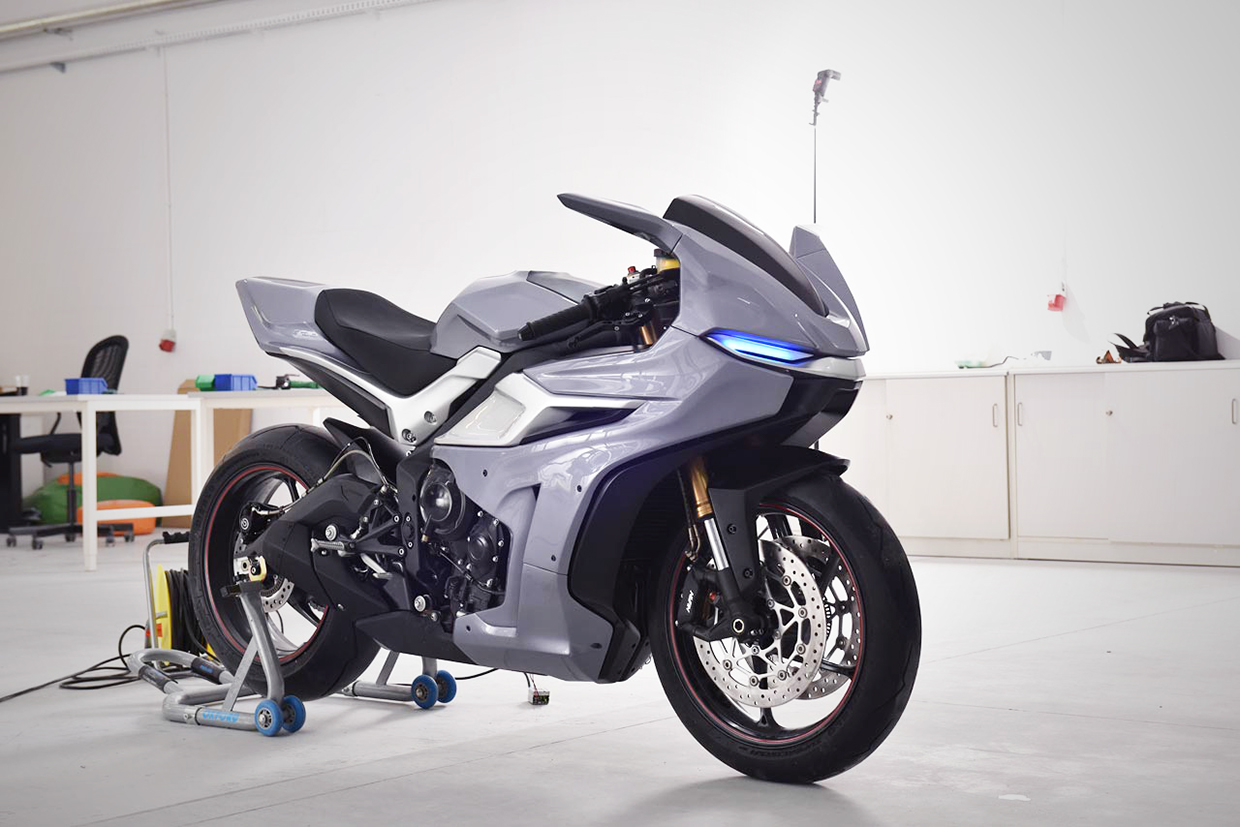

Full vacuum cast vehicle prototype

Testing and Iteration of advanced prototypes

Advanced working prototypes are the closest representations of a finished product. These prototypes integrate multiple systems and are used for extensive testing. They help evaluate performance, safety, durability, user experience, and regulatory compliance.
Testing generates structured feedback that drives refinement. Issues identified may lead to changes in design, materials, or engineering solutions. This iterative loop of build, test, improve is central to automotive development. Advanced prototypes help teams gain confidence that the product is ready to move toward production. It is important to note that some aspects of a prototype may not be tested for real world cases since they may not be as per real world specifications. For example, the body panels if 3D printed, can not be tested for durability and a seat’s comfort can of course not be tested on a clay model.

elementor-placeholder-image
Test ride image with camo
elementor-placeholder-image
Testing a 3D printed part mechanism

Cross-Functional Collaboration

Moving a prototype toward final development requires close collaboration across teams. Design ensures the product meets aesthetic and user expectations. Engineering focuses on performance, reliability, and safety. Manufacturing evaluates how easily the product can be built at scale. Quality ensures consistency and compliance.
These teams work together through reviews, data sharing, and problem-solving sessions. Clear communication and mutual understanding are essential. For freshers, learning how these functions interact is just as important as learning technical tools.

Where to start

For new joiners, the first priority should be understanding the overall process rather than mastering tools immediately. Learning basic terminology, reading drawings, and observing reviews helps build context. Developing curiosity and asking informed questions accelerates learning.
Modern tools and techniques such as AI-assisted design, digital simulations, and 3D printing are increasingly common. While these tools enhance speed and capability, they do not replace fundamentals. A strong grasp of design intent, engineering basics, and collaboration will remain essential throughout a fresher’s career.
